RWS-B _ /ME

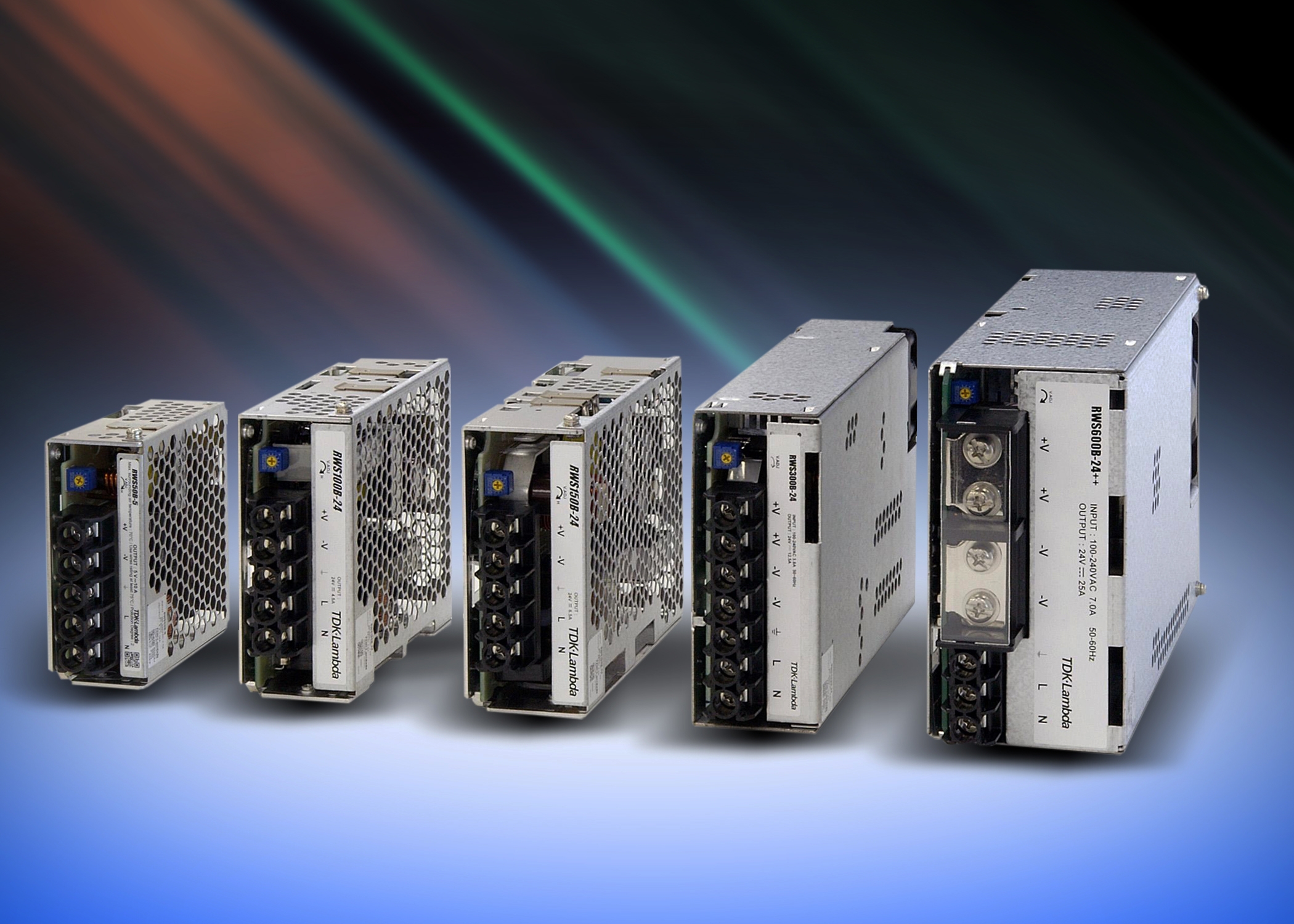

  • Offering solid performance at a reasonable price, the RWS-B series of 50 to 1500W power supplies feature 10 year electrolytic capacitor lifetimes, ensuring long field life. The products are backed by a seven year warranty and are available with output voltages from 5 to 48V. In addition to IEC/EN/UL 60950-1 certification, medically certified RWS1000B/ME and RWS1500B/ME models to IEC 60601-1 are also available. RWS-B models operate from a universal AC input of 85 - 265V to meet a wide range of applications, including industrial, medical, test & measurement, broadcast, communications and LED signage.

상세페이지

Input Voltage

100/200VAC



Output Power

50/100/150/300/600/1000/1500W_RWS-B

1000/1500W_RWS-B/ME



Output Voltage Lineup

5 to 48VDC_RWS-B

12to 48VDC_RWS-B/ME



Features

Simple function model Long service life_RWS-B

Approved by medical standard (compliant with IEC60601-1 Ed.3)

Input-output:2xMOPP _RWS-B/ME



Number of Outputs : 1CH
