CCG

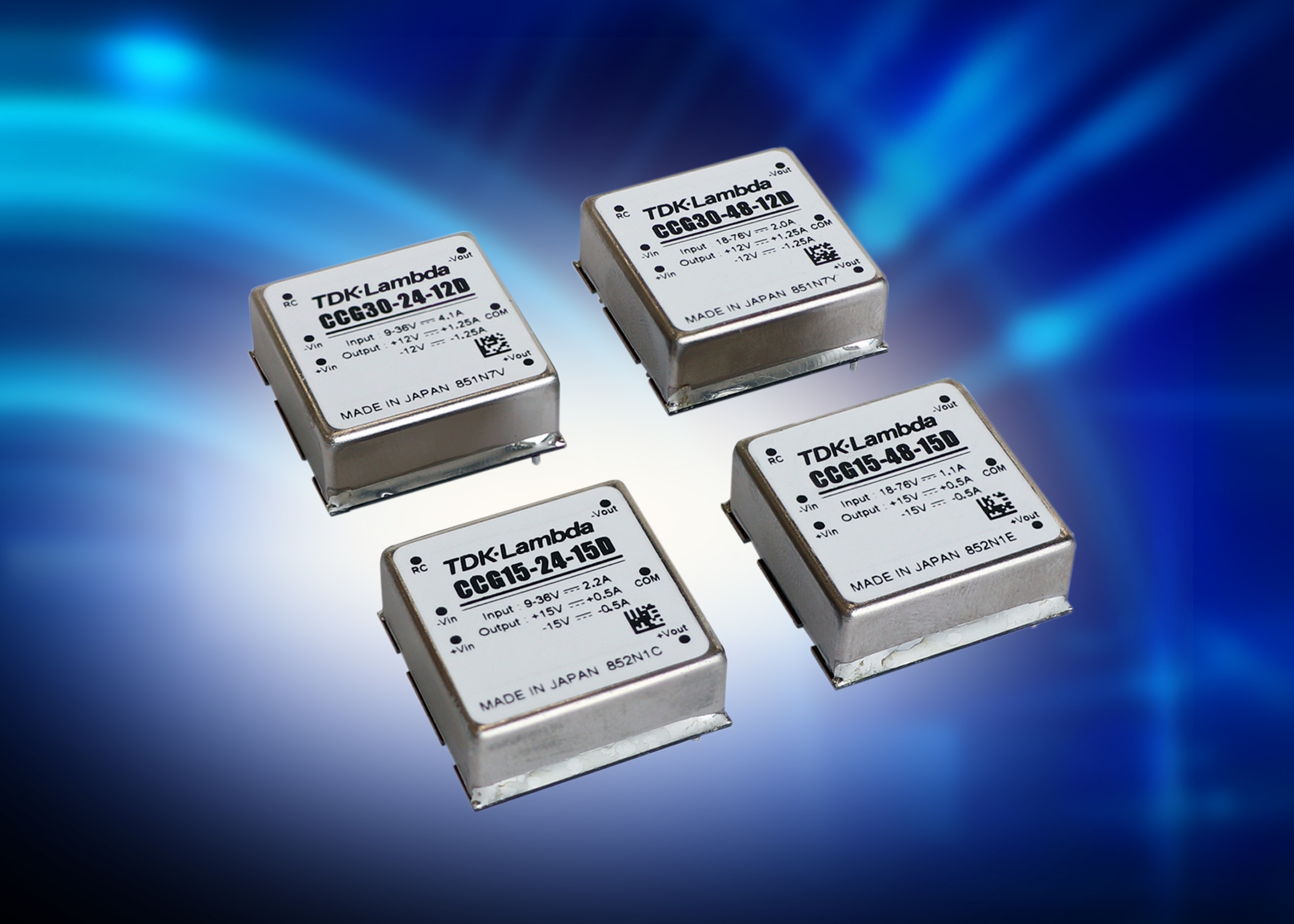

  • Packaged in the industry standard 1 x 1 inch footprint, the 15 - 30W CCG series can operate over a wide 9 to 36V or 18 to 76Vdc input range. The units are enclosed in a metal case with 6-sided shielding for lower noise and encapsulated for rugged shock and vibration performance. Available with output voltages of 3.3, 5, 12, +/-12, 15, +/-15Vdc, 24 or 30V, these high efficiency converters (up to 91%) will operate in ambient temperatures of -40°C to +85°C.

상세페이지

Input Voltage

12/24 VDC

24/48ADC



Output Power : 15/30W



Output Voltage Lineup

SingleOutput : 3.3 to 15VDC

DualOutput : ±12/±15VDC

Features

1x1 inch size Wide input voltage range

Six-side shielded type Convection cooling

* Dual output models are also available.

Number of Outputs : 2CH
